UGI Energy Services LNG Storage Tank - Bethlehem

PROJECT HIGHLIGHTS

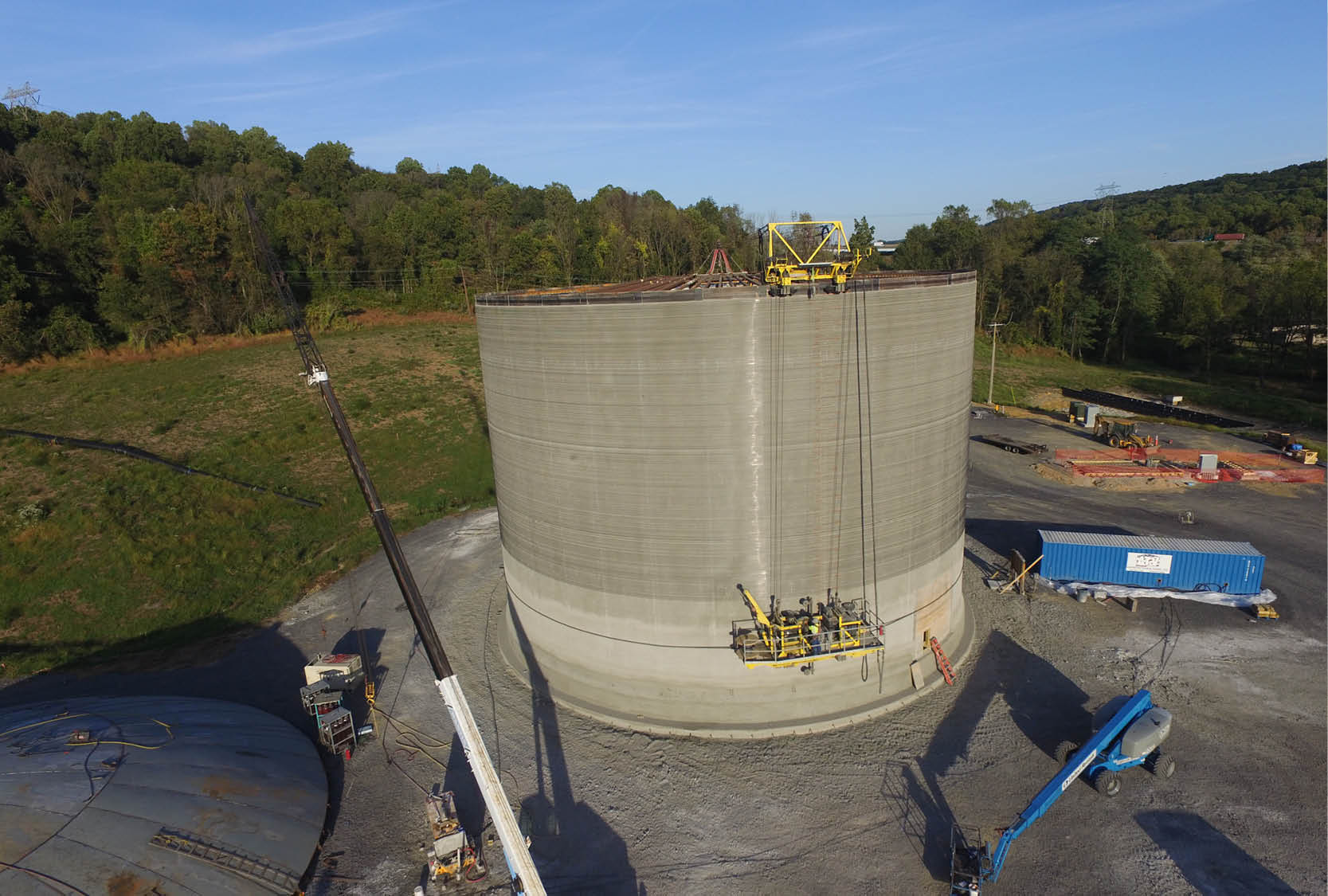

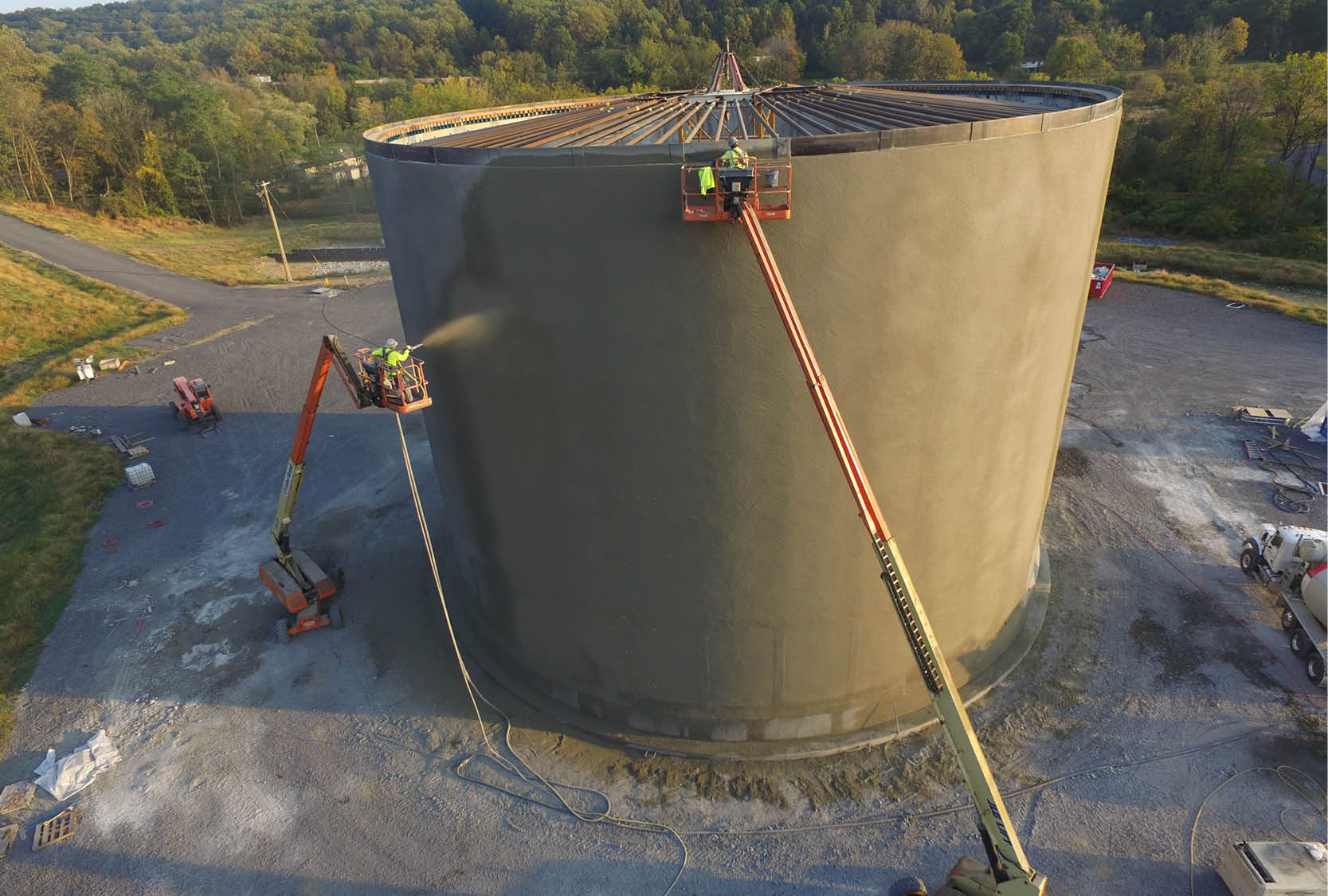

• Cashman | Preload Cryogenics (CPC) completed the design and construction of a precast,
• prestressed concrete secondary containment wall for a 7,500-cubic-meter (2.0 million gallons) fullcontainment LNG storage tank (26.52 meters in diameter by 19.3 meters tall).

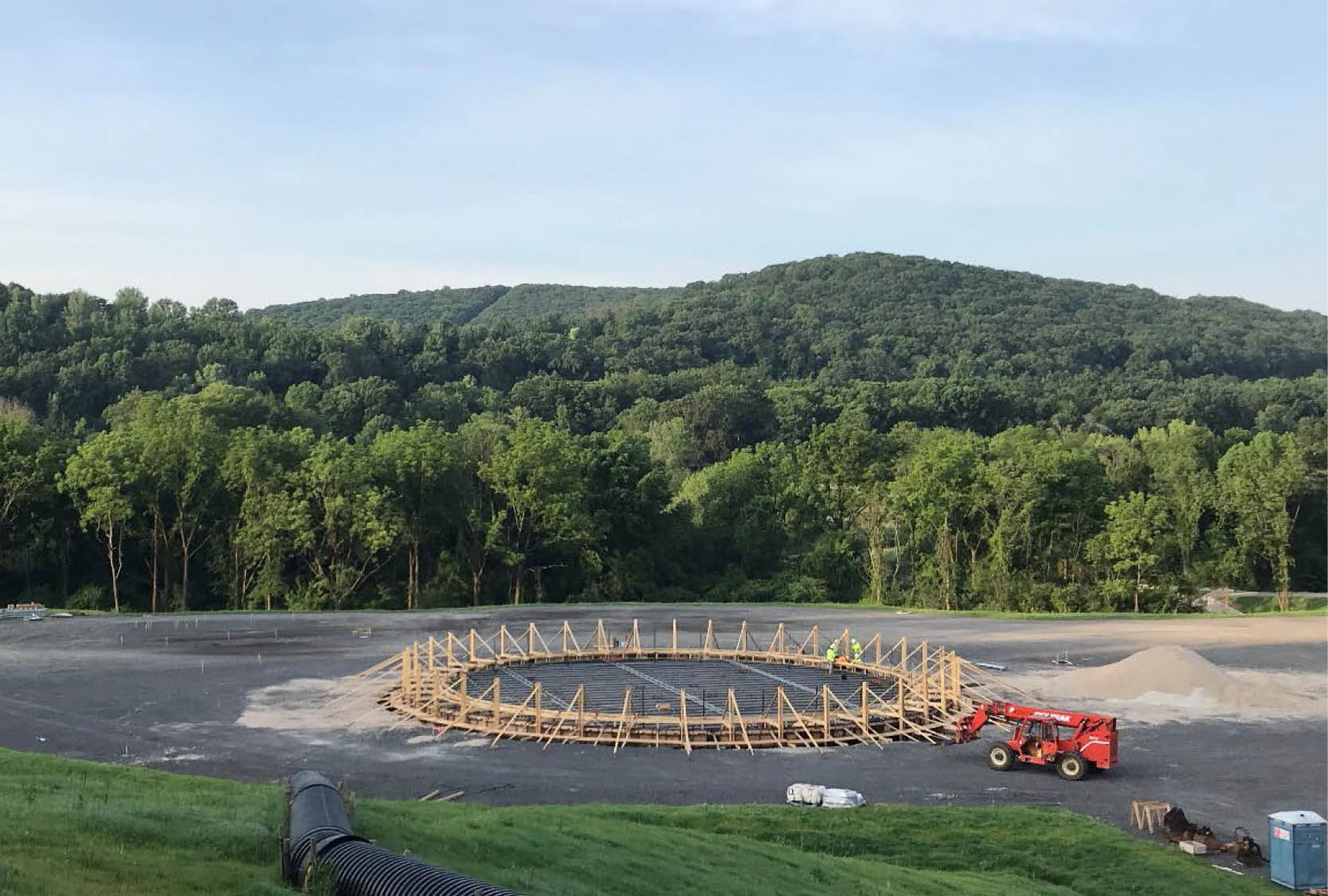

• The design includes a concrete raft foundation constructed on ground improvement elements.
• Precasting of the secondary wall panels was performed off-site concurrently with ground
• improvement installation and raft foundation construction.

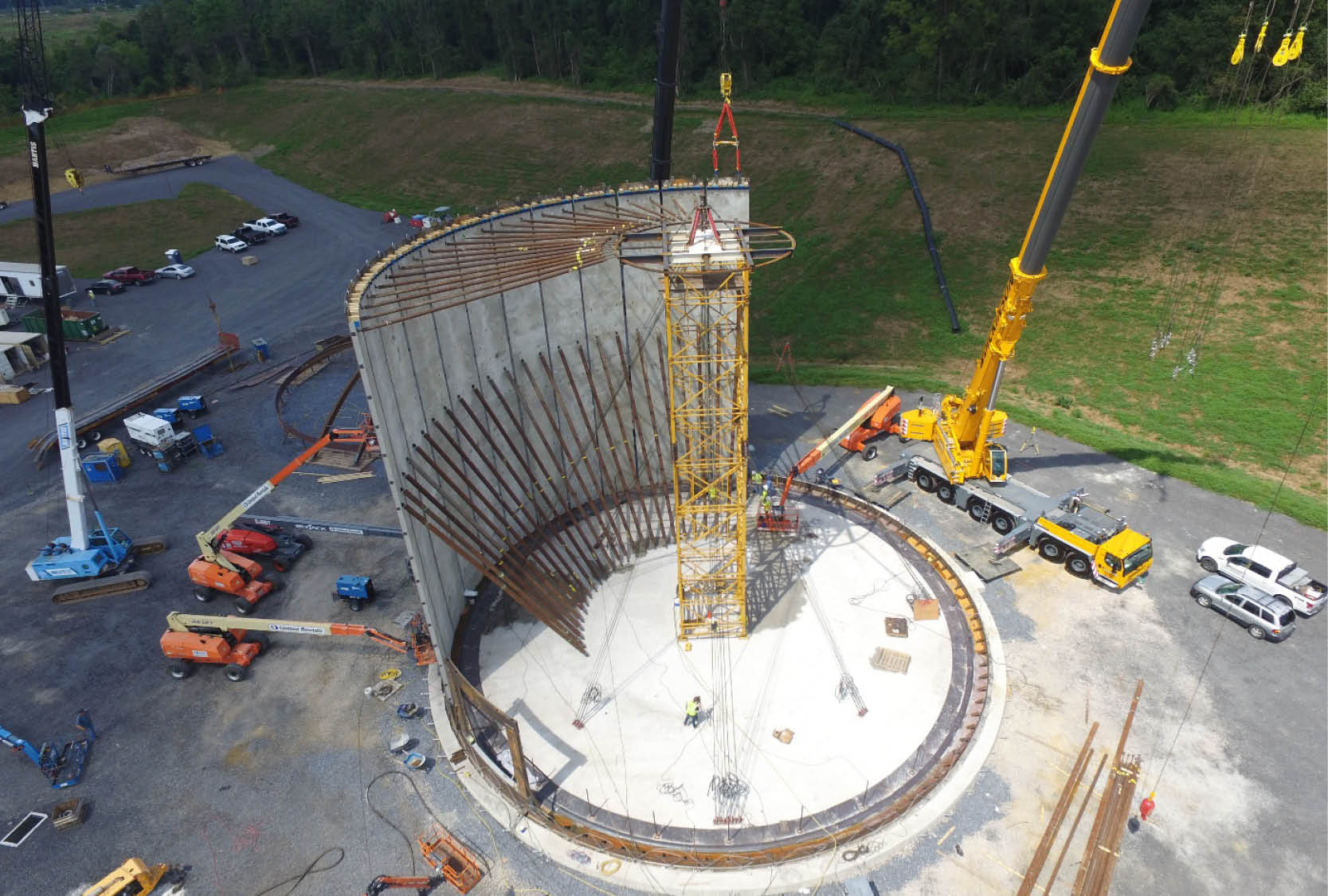

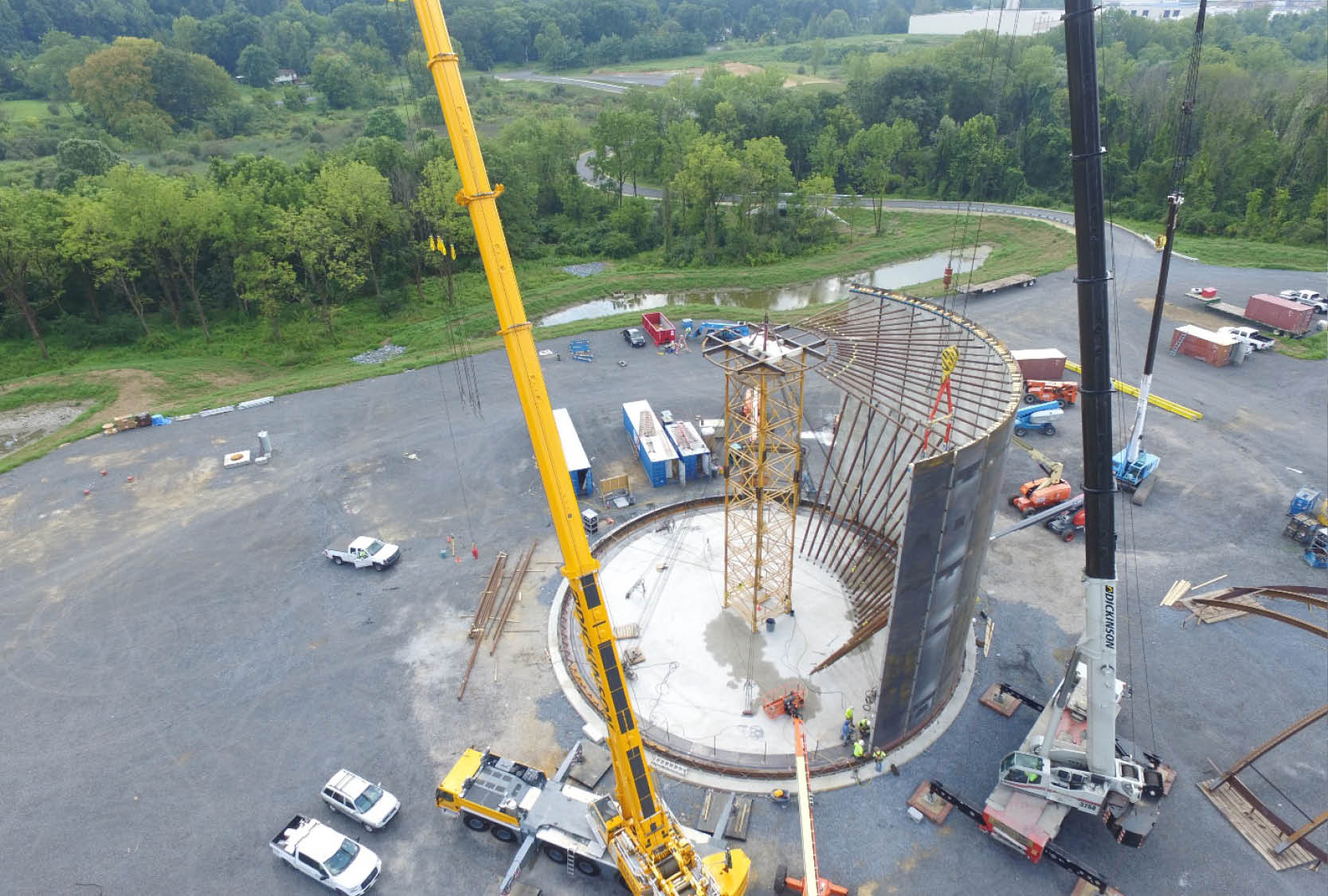

• The wall panels were transported to the site, erected, and braced in-place over a 7-day period.

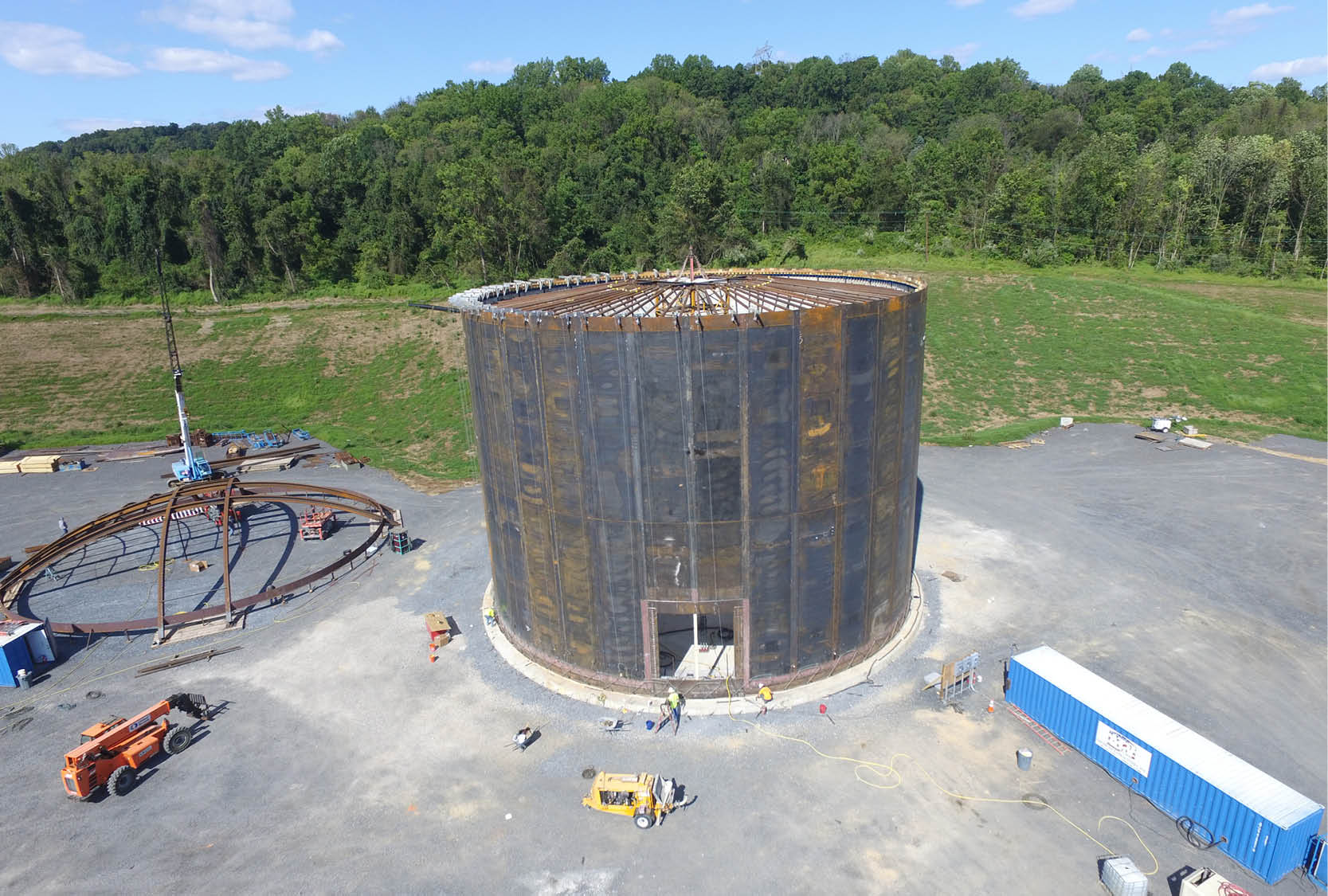

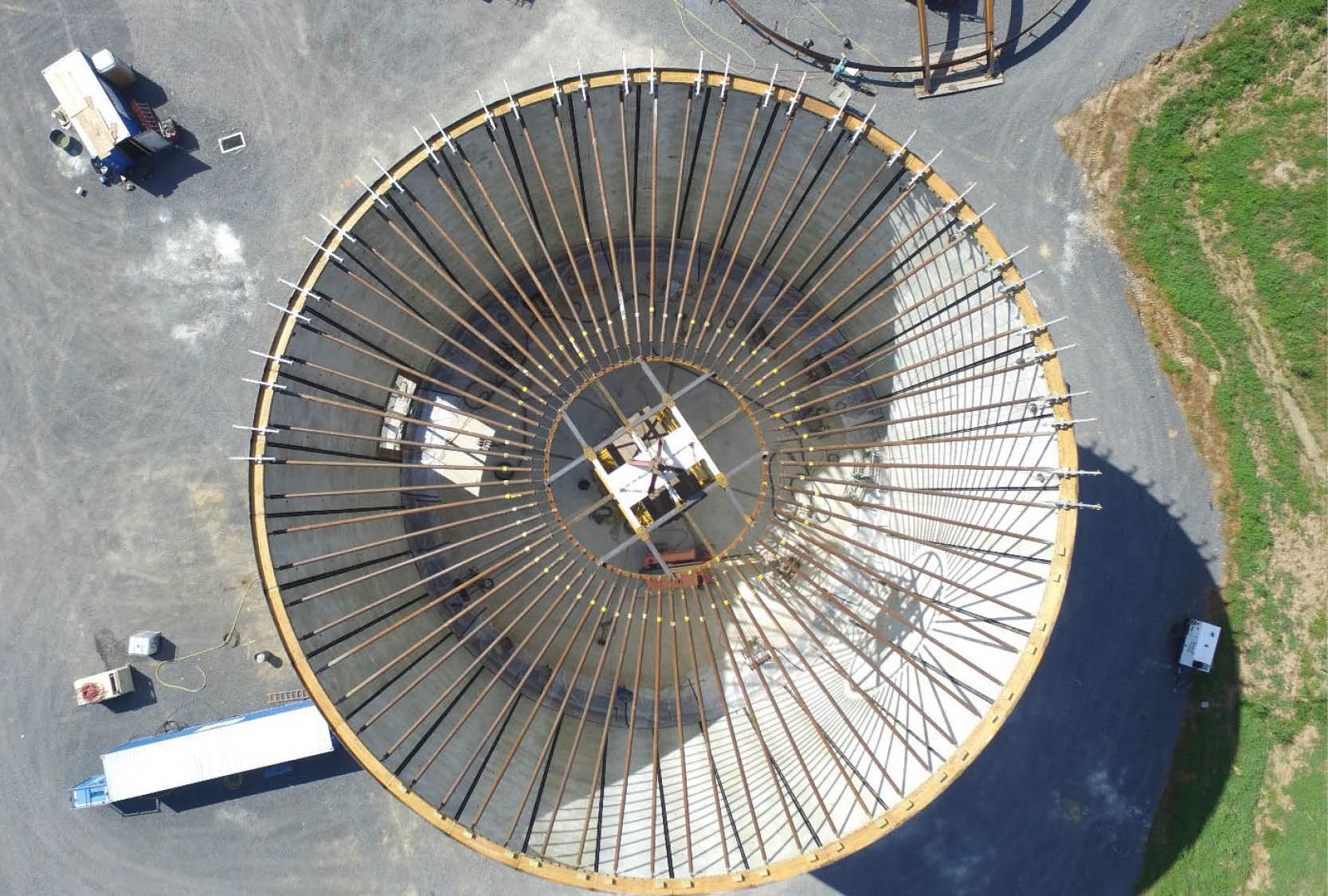

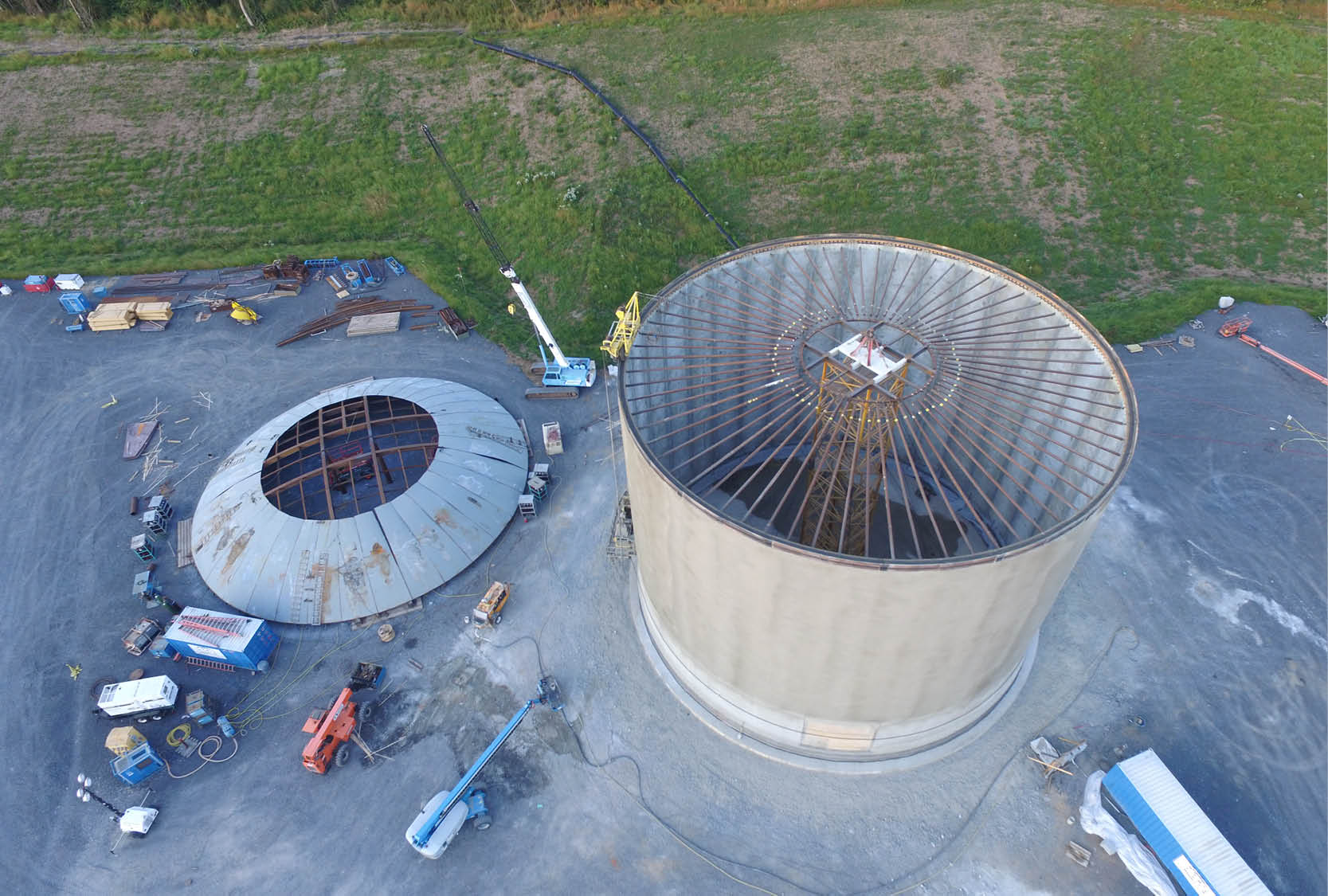

• Fabrication and erection of the ASTM A-516 carbon steel dome and suspended ceiling was performed concurrently with construction of the outer wall.
• The Inner Stainless Steel tank was completed over the winter in a “dried-in” condition.
